EKcraft’s Consumer Electronics Wire Harness with Miniature Speaker Connection provides professional production, manufacturing and supply services for the global market.This wiring harness is mainly designed to serve the acoustic system in consumer electronic devices.It is the entire electrical and mechanical connection system that transmits the electrical signal from the audio source (such as the motherboard, wires) to the speaker's voice coil.We offer bulk ordering support and enjoy factory direct supply prices. Contact us now for a quote.

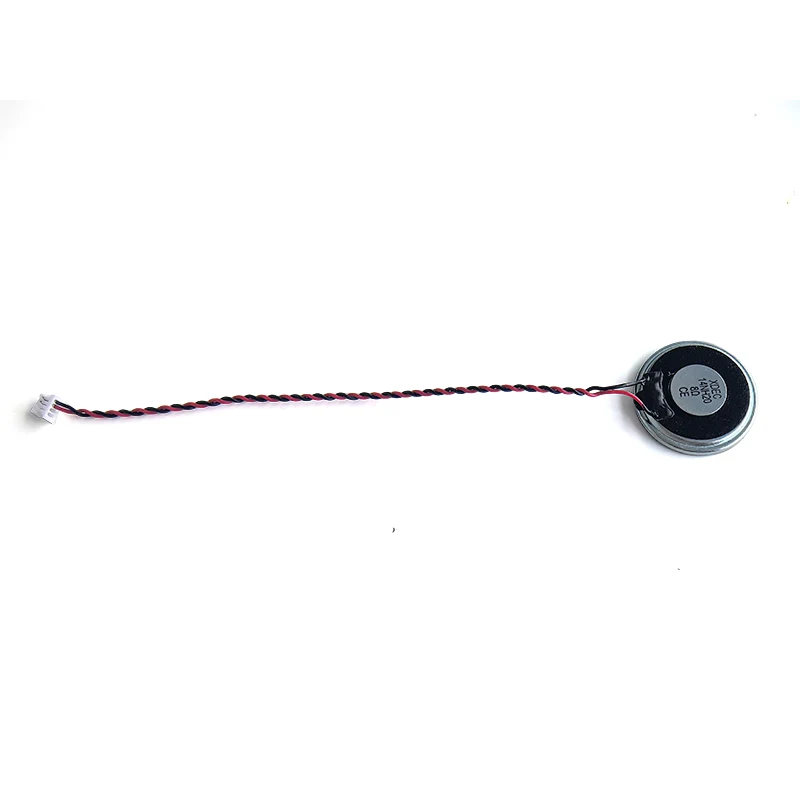

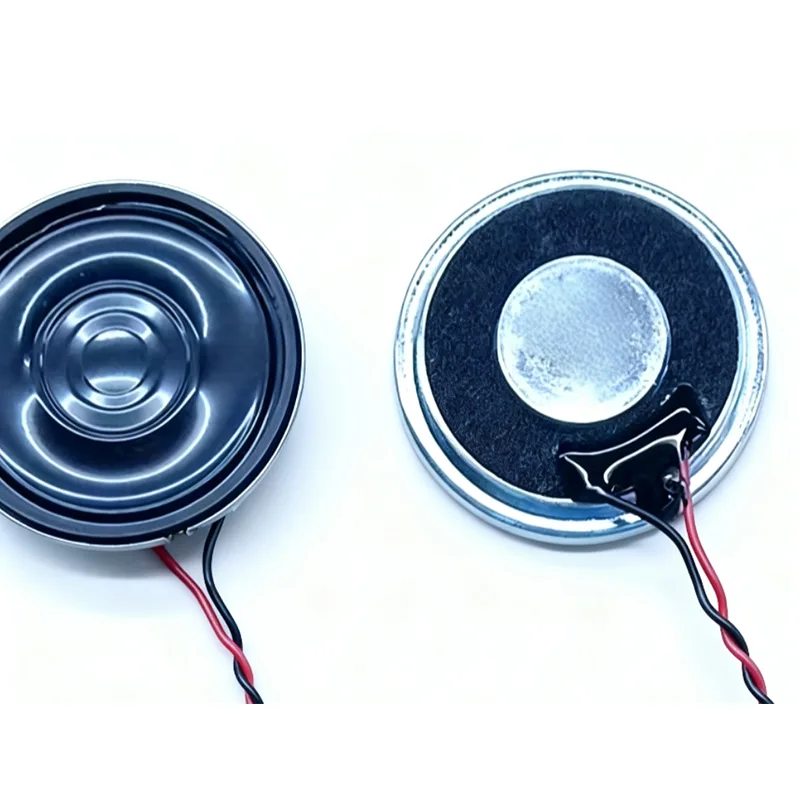

The Consumer Electronics Wire Harness with Miniature Speaker Connection is a 2P connector wire harness specifically designed for speakers. It is responsible for transmitting the audio signals from the device's motherboard to the speakers, ensuring a stable and efficient transmission of the audio signals, thereby enabling the speakers to produce sound properly. One end of the Consumer Electronics Wire Harness with Miniature Speaker Connection is a miniature speaker, which is circular in shape, with a metal-textured diaphragm area in the middle, black edges, and connected by red and black dual-color wires. The other end of the wire harness supports connector installation or soldering treatment.
This Consumer Electronics Wire Harness with Miniature Speaker Connection is a miniaturized version of a moving-coil speaker. It uses the principle of electromagnetic induction to make the diaphragm vibrate and produce sound, providing audio output for the connected devices. The signal of this Consumer Electronics Wire Harness with Miniature Speaker Connection has the characteristics of stable transmission, compact structure, and strong compatibility. The miniature speaker, terminals, and connectors of this Consumer Electronics Wire Harness with Miniature Speaker Connection can be customized according to user requirements.
|
Performance Advantages |
Good electrical compatibility |
|
Material Advantages |
The wiring harness has strong reliability. |
|
Structural Advantages |
Miniaturized design, suitable for small spaces |
|
Functional Advantages |
Stable sound quality |
It is mainly applied in the acoustic systems of consumer electronic devices such as Bluetooth headphones, smart watches, small portable speakers, and electronic toys, serving as a signal transmission bridge between the miniature speakers and the device's mainboard, ensuring the realization of audio functions.
|
Compatible speaker |
Moving-coil miniature speaker |
|
Impedance |
8Ω |
|
Diameter |
14mm |
|
Wire impedance |
Low impedance |
|
AWG |
customizable |
|
Terminal type |
customizable |
|
Connector Type |
customizable |
|
Cable Length |
customizable |
