EKcraft’s Energy and Power Engineering Wire Harness for Elevator Door Call Button offers professional manufacturing and supply services to the global market.This wiring harness is used for the core connection component of the elevator call door switch, and is used for the circuit connection of the elevator call door / elevator floor door call door switch.This energy and power engineering wire harness has enabled the transmission of the "status detection - feedback signal" for the door opening and closing mechanism.We offer bulk ordering support and enjoy factory direct supply prices. Contact us now for a quote.

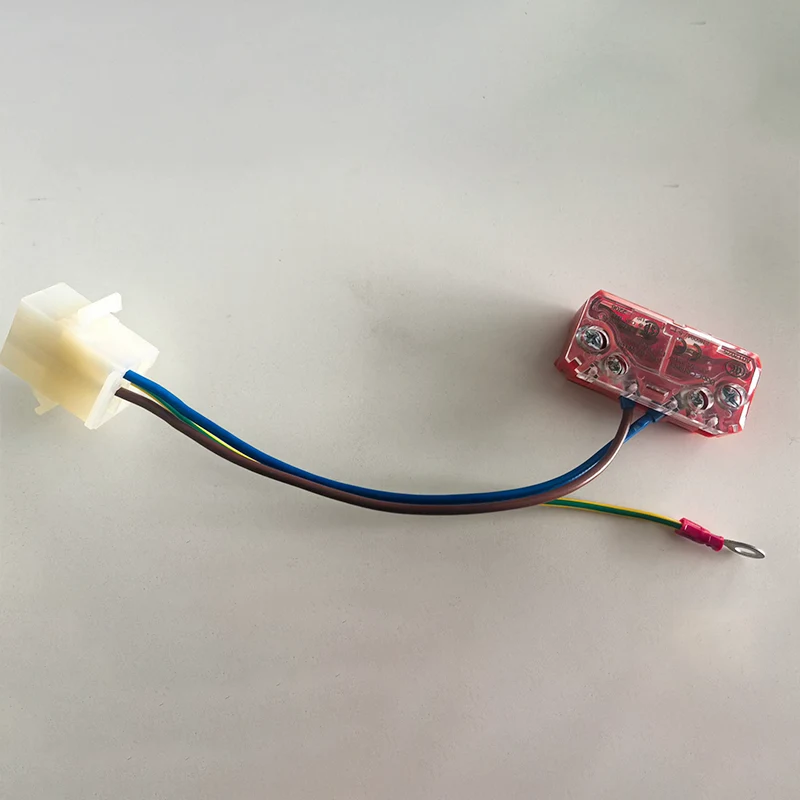

This Energy and Power Engineering Wire Harness for Elevator Door Call Button assembly consists of custom connectors, door lock contact terminals and multi-color wires, and is responsible for conducting the circuit and transmitting signals between the door call switch and the elevator control system.Align and insert the white plug of the energy and power engineering wire harness with the corresponding interface of the elevator call door switch. Connect the feedback signal line and power line of the call door switch to the screw holes of the red transparent door lock contact terminals. The yellow and green colored wires are the grounding terminals, which need to be reliably connected to the metal grounding device of the elevator to ensure the electrical safety protection of the call door switch.
When the elevator door closes and locks, the mechanical structure of the door switch triggers the action of the internal contacts. This Energy and Power Engineering Wire Harness for Elevator Door Call Button, through a low-resistance connection between the wire and the terminal, quickly transmits the "door has locked" signal to the elevator control system. If the door is not locked, the contacts of the door switch open, and the product then feeds back the "door is not locked" signal to the control system, triggering the elevator safety circuit and prohibiting the elevator from operating.
|
Performance Advantages |
High reliability，Anti-electromagnetic interference |
|
Material Advantages |
Complies with elevator safety standards and has good conductivity. |
|
Structural Advantages |
The design features screw fastening, which prevents false connection and short circuit. |
|
Functional Advantages |
Signal feedback stability |
It is applicable to scenarios such as elevator door systems, elevator control system renovations, production and assembly of new elevator equipment, signal transmission, and component power supply.
This energy and power engineering wire harness, including AWG (American Standard Wire Gauge), cable length, connector brand, door lock contact terminal brand, and wiring mode, can all be customized according to the customer's requirements.
