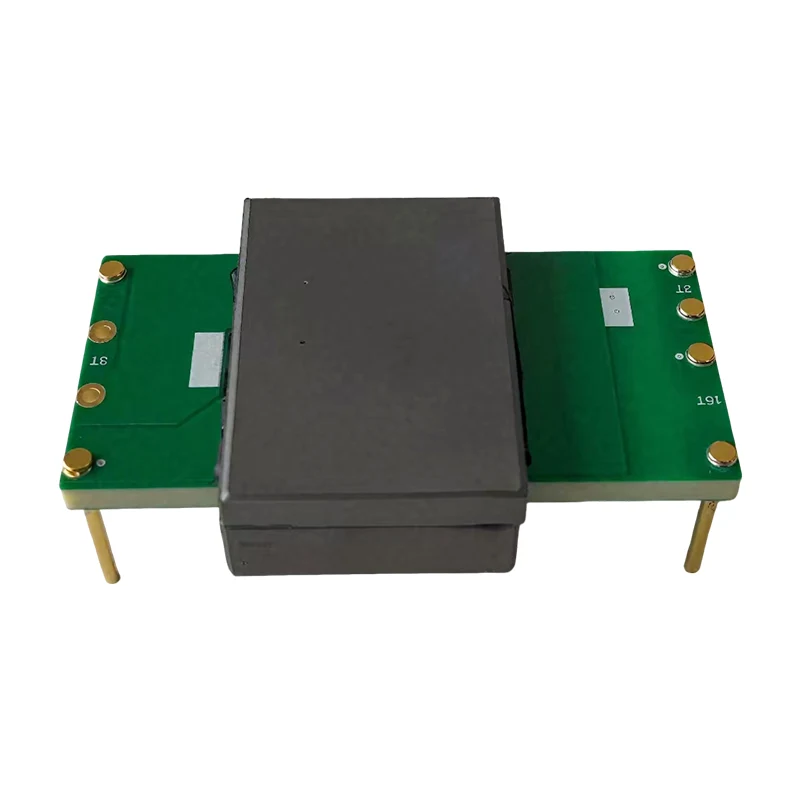

EKcraft Planar Transformer offers professional production, manufacturing and supply services to the global market. This transformer is a new type of transformer that uses multi-layer printed circuit boards (PCBs) or flat copper sheets as windings. It has a small size, light weight, high efficiency and low temperature rise.We offer bulk ordering and enjoy factory direct supply prices. Contact us now for a quote.
This planar transformer has its windings etched or pressed onto the PCB (printed circuit board), combined with a flat ferrite core, which significantly shortens the magnetic path length, reduces copper loss and iron loss. This planar transformer adopts a flattened design, with a volume of 1/3 to 1/5 of that of traditional transformers, and the weight is reduced by more than 50%, suitable for the small internal space of equipment. The windings of the planar transformer are wide and thin copper foils, which effectively increase the surface area and greatly reduce the influence of skin effect, making it very suitable for high-frequency (hundreds of kHz to MHz level) switching power supplies. This planar transformer can meet the modern power electronics technology's pursuit of high frequency, high efficiency and high power density.
|
Performance Advantages |
High power density |
|
Material Advantages |
High reliability and high consistency |
|
Structural Advantages |
Flat design, easy to integrate |
|
Functional Advantages |
High efficiency and excellent high-frequency characteristics |
It is applied to network switches, routers, notebook computer power adapters, LCD TVs, photovoltaic inverters, industrial motor drives, etc.
|
Power Range |
10W-5000W |
|
Input and Output voltages |
Input 5V-400V, Output 1.8V-220V |
|
Operating Frequency |
20KHz-2MHz |
|
Efficiency |
90%-98%(Full Load) |
|
Temperature Rise |
At full load≤40℃（Ambient temperature 25℃） |
|
Insulation Grade |
Class B（130℃）、Class H（180℃） |
|
Isolation Voltage |
1kV–10kV（rms） |
Other types besides the above listed can be produced according to customer’s needs.
