Specialized Equipment Wire Harness with RJ45 Connector

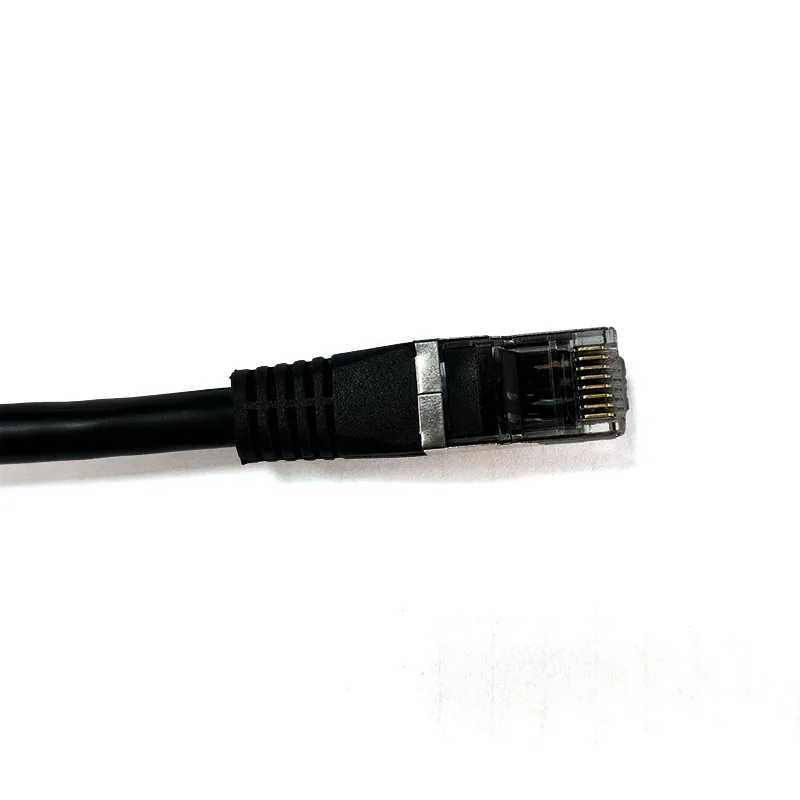

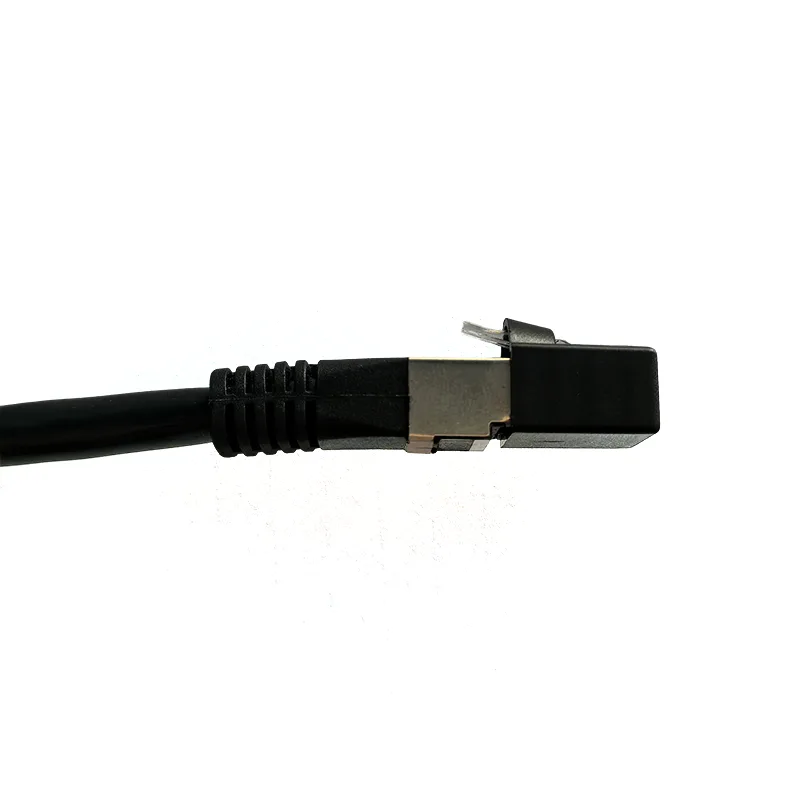

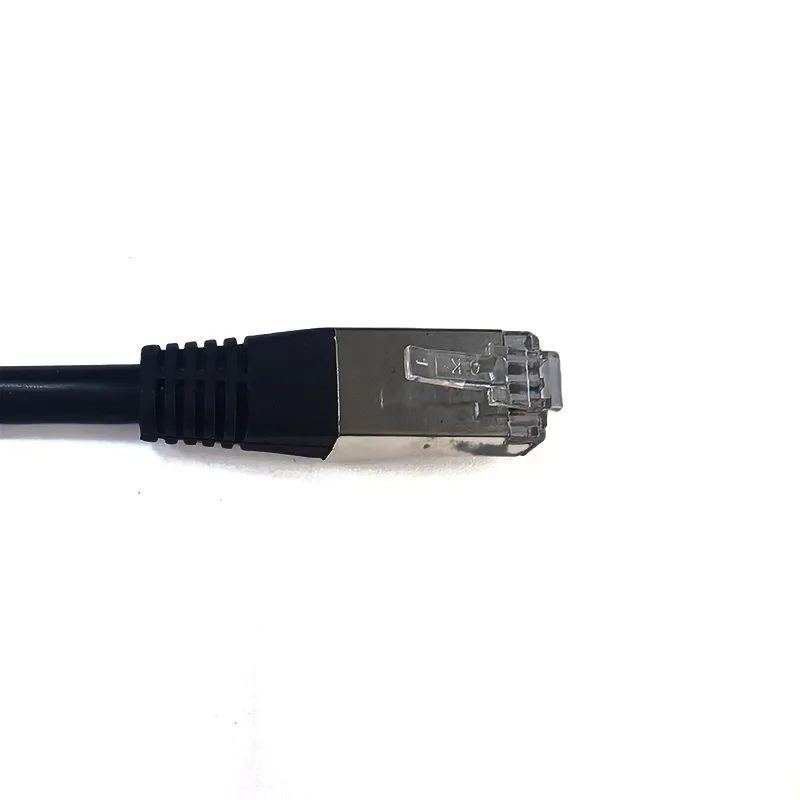

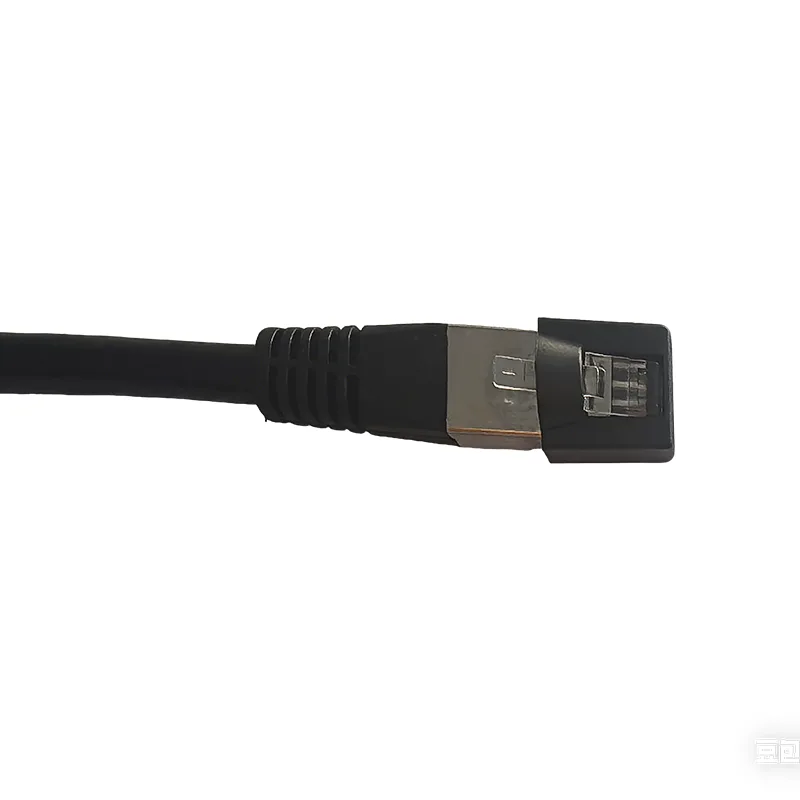

The Specialized Equipment Wire Harness with RJ45 Connector from EKcraft differs from audio and video wiring harnesses. Its core function is to carry Ethernet data signals for interaction. One end of the Specialized Equipment Wire Harness with RJ45 Connector features a pre-pressed high-quality RJ45 plug. Through an automated crimping process, multiple strands of tin-plated copper cores are firmly combined with the RJ45 crystal head, ensuring consistent electrical performance when connected to standard network ports, reducing crosstalk interference, and addressing the packet loss and latency issues commonly encountered with ordinary network cables. Additionally, the corrugated stress-relief structure at the interface tail can disperse the tension when the cable is bent, significantly enhancing durability.

The exposed cable at the other end (which can provide stripping or customized processing such as terminal installation) reserves flexible connection space for customers, facilitating direct welding to the PCB board, connection to internal wiring terminals, or secondary processing. EKcraft's Specialized Equipment Wire Harness with RJ45 Connector provides additional mechanical protection and continuous shielding for the metal housing plugs, ensuring that the shielding layer can form an effective equipotential connection with the device chassis through the housing during insertion, thereby enhancing the overall EMC (Electromagnetic Compatibility) performance of the system.

Product Features

Product Applications

Applicable to fields such as industrial automation equipment, network and communication equipment, security monitoring systems, medical and testing instruments, self-service terminals and commercial equipment, for example, servo drives, routers, connection cables between the internal motherboards and external waterproof tail wires of network cameras (IPC), information query machines, etc.

Product Parameter
