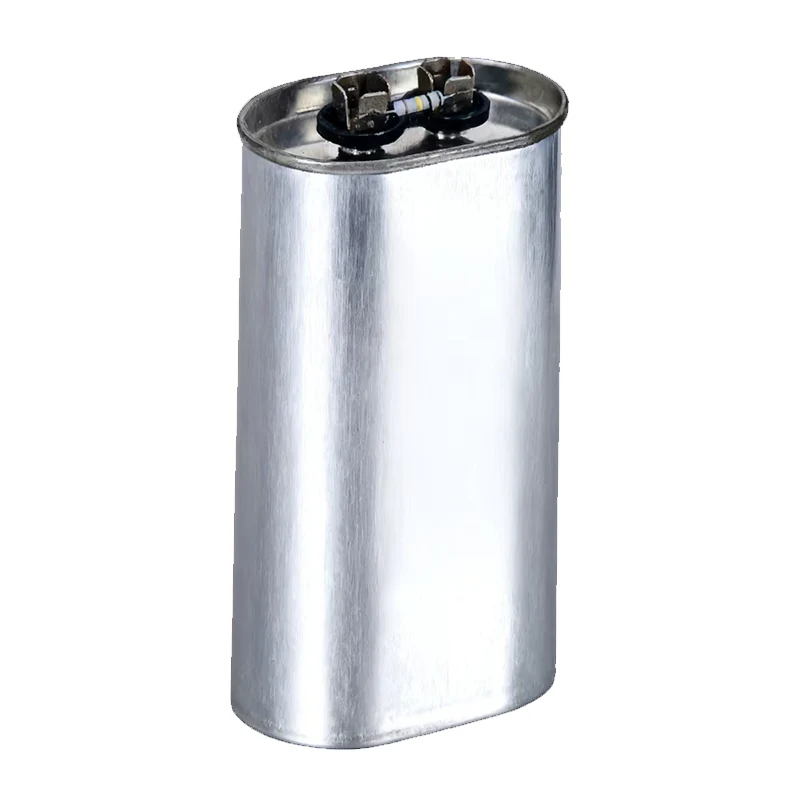

EKcraft run capacitor CBB66 Series provide professional production, manufacturing and supply services to the global market.This run capacitor is designed specifically for the demanding motion operating environment of medium to high-power single-phase motor-driven equipment. It is an ideal choice for industrial production lines and critical household appliances.We offer bulk ordering support and enjoy factory direct supply prices. Contact us now for a quote.
This run capacitor CBB66 Series is an ultra-high-performance operating capacitor with a metal casing, specially designed for extreme working conditions. It boasts excellent self-healing properties and lower electrical losses. This run capacitor features a reinforced metal casing with higher mechanical strength. The sealed technology using laser welding ensures absolute airtightness, guaranteeing an extremely long service life. The service life of this run capacitor is much longer than that of standard capacitors, with a wider rated operating temperature range and higher tolerance voltage level.
Shell Material:Aluminum
Lead ways:wires、tabs(2+2、2+4、4+4、2+3+4、4+4+4)
|
Performance Advantages |
High reliability, strong self-healing ability and stable shock resistance.Designed specifically for heavy single-phase motors. |
|
Material Advantages |
Efficient self-healing, excellent heat dissipation, explosion-proof sealing, and long-term stable operation. |
|
Structural Advantages |
Encapsulated in a high-strength, flame-retardant metal casing, providing exceptional hermetic sealing, moisture resistance, and mechanical robustness. |
|
Functional Advantages |
It helps the motor start smoothly and optimizes the operating performance in high-power single-phase AC applications. |
This run capacitor CBB66 Series is capable of handling extreme conditions and meeting long-life requirements. It is suitable for environments with high temperatures, high humidity, and high vibration, such as deep well pumps, large air compressors, cold storage facilities, etc.
|
Temperary℃ |
Rated Voltage(VAC) |
Capacitance range(μF) |
Capacitance tolerance |
Examine voltage |
Ioss tangent |
Operating frequency |
|
70 |
120～540 |
3～100 |
±2%±5% Or upon customers |
T-T:2.0Un/2S |
Tanδ≤0.002 （100HZ） |
50/60HZ |
|
85 |
T-C:≥2200VAC/2S |
|||||
|
100 |
|
Standard Capacity MFD(μF) |
Rated Voltage(VAC) |
Dimension(mm) |
|||
|
D |
H |
L |
M(mm) |
||
|
28 |
240 |
45 |
75 |
18 |
8X10 |
|
55 |
240 |
50 |
100 |
18 |
8X10 |
|
10 |
180 |
40 |
65 |
16 |
8X10 |
|
35 |
300 |
45 |
100 |
18 |
8X10 |
|
69 |
300 |
55 |
100 |
20 |
10X10 |
|
10 |
400 |
45 |
75 |
18 |
8X10 |
|
15 |
400 |
45 |
85 |
18 |
8X10 |
|
24 |
400 |
50 |
100 |
18 |
8X10 |
|
24 |
525 |
55 |
100 |
20 |
10X10 |
|
26 |
540 |
55 |
100 |
20 |
10X10 |
|
30 |
540 |
55 |
110 |
20 |
10X12 |
|
32 |
540 |
55 |
110 |
20 |
10X12 |
|
35 |
540 |
55 |
125 |
20 |
10X12 |
|
Standard Capacity MFD(μF) |
Rated Voltage(VAC) |
Dimension(mm) |
|||
|
D |
H |
L |
M(mm) |
||
|
30 |
540 |
45 |
71 |
135 |
20 |
|
32 |
540 |
45 |
71 |
135 |
20 |
|
35 |
540 |
45 |
71 |
135 |
20 |
Other types besides the above listed can be produced according to customer’s needs;Data above may be changed without notice.
