EKcraft Inner Rotor BLDC Motor offers professional production, manufacturing and supply services to the global market. This BLDC motor features high rotational speed, low inertia, fast response and excellent heat dissipation capability.We offer bulk ordering and enjoy factory direct supply prices. Contact us now for a quote.

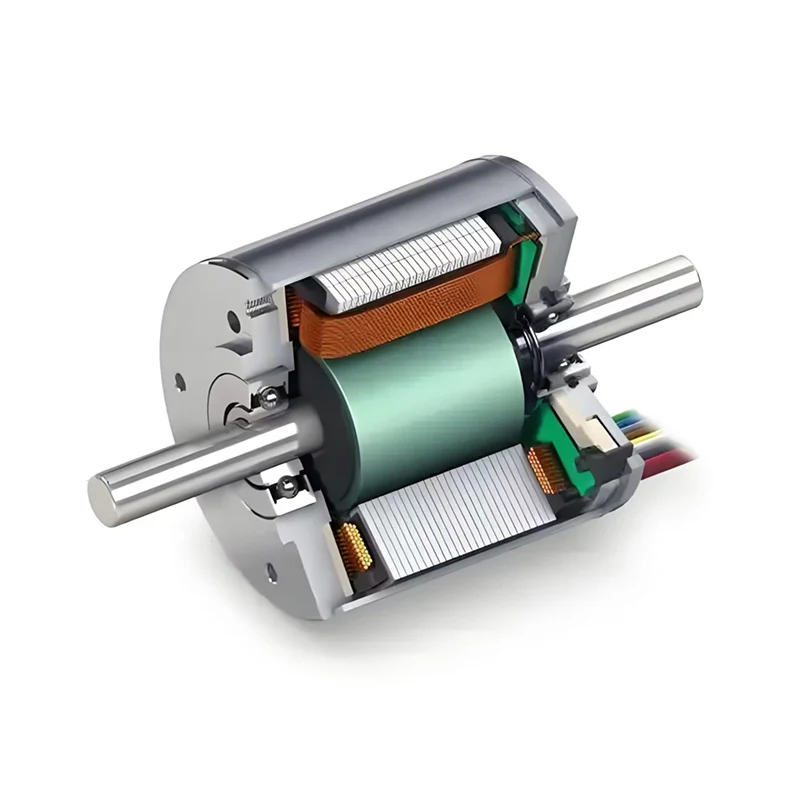

The BLDC motors belong to inner rotor BLDC motors. They have a small rotor inertia and excellent dynamic response.The BLDC motor employs electronic commutation and uses the driver to switch the direction of current.Capable of converting direct current electrical energy into mechanical energy.This BLDC motor features high reliability, no brush sparks, reduced electromagnetic interference, and low noise.This BLDC motor usually uses a DC power supply.
|
Performance Advantages |
Energy Efficiency，High reliability，No brush wear, long service life， |
|
Material Advantages |
High power density, excellent heat dissipation |
|
Structural Advantages |
The rotor has a small rotational inertia and exhibits good dynamic response. |
|
Functional Advantages |
The speed range is wide，No brush sparks,Low EMI |
Applied to servo motors, robotic arms, unmanned aircraft, electric toothbrushes, etc.
|
Rated Voltage |
48VDC |
|
|
Rated Power |
100W |
Output power during continuous and stable operation |
|
Rated Current |
2.5A |
At rated load |
|
Peak Current |
7.5A |
Duration≤15 seconds |
|
Rated Speed |
3000rpm |
No-load rated speed |
|
Terminal-to-Terminal Resistance |
0.8Ω |
At an ambient temperature of 25°C |
|
Terminal-to-Terminal Inductance |
1.2mH |
At a test frequency of 1 kHz |
|
Control Mode |
Open-loop control / Closed-loop control |
|
Other types besides the above listed can be produced according to customer’s needs.
