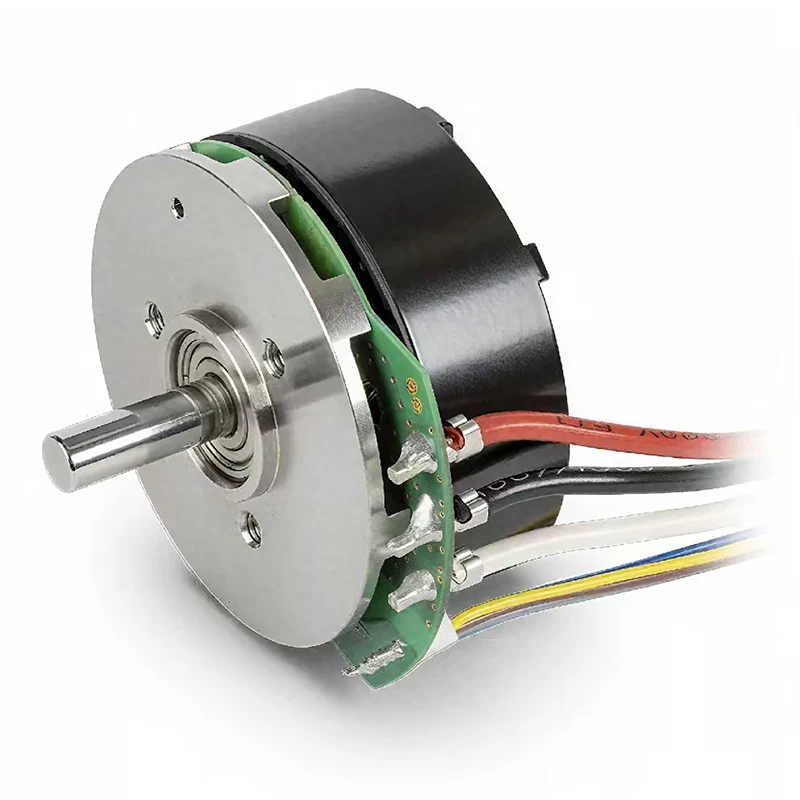

EKcraft Outer Rotor BLDC Motor offers professional production, manufacturing and supply services to the global market. This outer rotor BLDC flat motor adopts a flat design, saving space and being suitable for compact devices with limited thickness.We offer bulk ordering and enjoy factory direct supply prices. Contact us now for a quote.
The BLDC flat motor belongs to the outer rotor BLDC motor. The BLDC flat motor adopts electronic commutation and is a BLDC motor with the rotor and stator arranged in a parallel disc-like structure. The characteristic of the BLDC flat motor is that its diameter is much larger than its thickness. It is highly suitable for spaces with strict thickness limitations.
|
Performance Advantages |
High efficiency, good heat dissipation |
|
Material Advantages |
Resistant to corrosion, with excellent resistance to high-temperature demagnetization. |
|
Structural Advantages |
Innovative axial flux design,Flat design,Save space |
|
Functional Advantages |
No mechanical reversing mechanism, long service life |
Applied to unmanned aerial vehicle propulsion motors, robot joints, electric motors in smart phones, direct drive rotary tables, etc.
|
Rated Voltage |
24VDC |
|
|
Rated Power |
30W |
Continuous operation output power |
|
Rated Current |
1.58A |
At rated load |
|
Peak Current |
4.8A |
Duration≤10 seconds |
|
Rated Speed |
5000rpm |
No-load rated speed |
|
Terminal-to-Terminal Resistance |
1.47Ω |
At an ambient temperature of 25°C |
|
Terminal-to-Terminal Inductance |
0.61mH |
At a test frequency of 1 kHz |
|
Torque Constant |
3.55Ncm/A |
Torque per unit current |
Other types besides the above listed can be produced according to customer’s needs.
