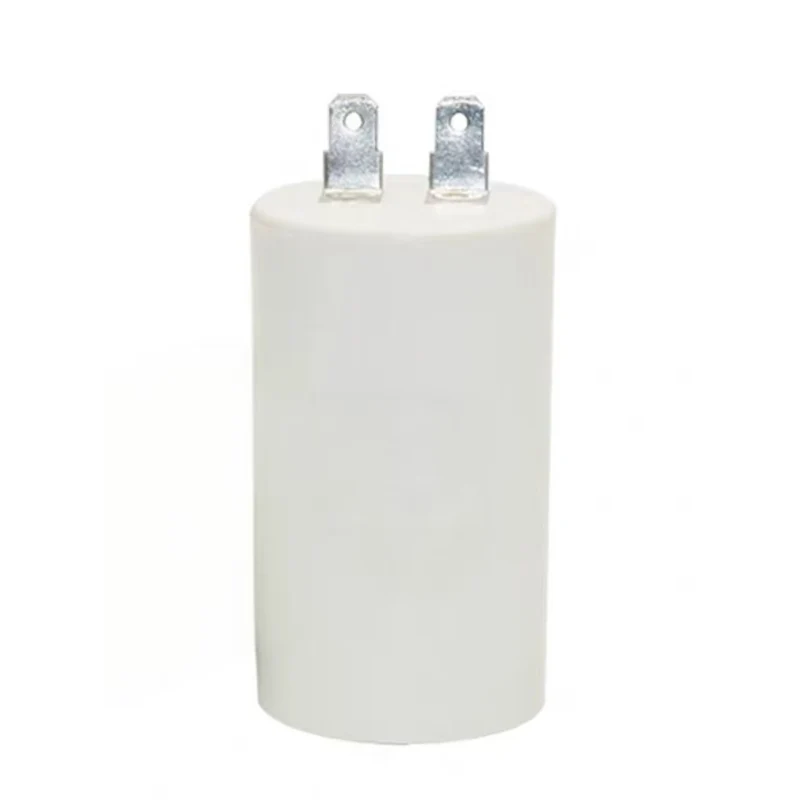

EKcraft Run Capacitor CBB60 Series provide professional production, manufacturing and supply services to the global market. The run capacitor is mainly used in equipment related to single-phase motor drives, helping motors start efficiently and improve their operating performance. We offer bulk ordering support and enjoy factory direct supply prices. Contact us now for a quote.
This capacitor is a highly reliable and energy-efficient run capacitor. EKcraft Run capacitor combines the self-repairing characteristic of metallized film with a sturdy flame-retardant epoxy resin packaging structure. During operation, it can achieve efficient motor startup and enhance performance. This run capacitor CBB60 Series has a strong ability to withstand impact currents, high overload capacity, low loss, high insulation resistance, and a long rated working life. It also has excellent self-repairing performance and an inbuilt flame-retardant epoxy resin packaging, ensuring safety and reliability.
Shell Material:ABS、Polypropylene、aluminum
Lead ways:wire、cables、tabs(1+1，2+2)
|
Performance Advantages |
High reliability and energy saving; |
|
Material Advantages |
Self-healing metallized polypropylene film |
|
Structural Advantages |
Encapsulated with a high-strength, flame-retardant epoxy resin for high stability |
|
Functional Advantages |
By shifting the phase, it generates a rotating magnetic field and starting torque, ensuring efficient motor starting and improving performance |
The run capacitor CBB60 Series is suitable for water pumps, compressors, washing machines, and different types of household appliances and industrial equipment that are driven by single-phase motors.
|
Capacitance Range |
1μF～150μF |
|
|
Rated Voltage |
250V～500VAC（50/60HZ） |
|
|
Capacitance Tolerance |
±5% or upon customer’s demand |
|
|
Loss Tangent |
tgδ≤0.002（50HZ-100HZ） |
|
|
Standard Temperature |
-25℃～+70℃、-40℃～+85℃ |
|
|
Climate calss |
25/70/21，40/85/21 |
|
|
Examine Voltage |
Between derivation head |
AC≥2.00Un 2S NO BREAKDOWN |
|
Between derivation head and shell |
AC≥2000V 2S NO BREAKDOWN |
|
|
Insulation Resistance |
Between derivation head |
Rj·C≥3000MΩ·μF |
| Between derivation head and shell |
Rj·C≥1000MΩ |
|
|
Security Level |
P0 |
|
|
Shell Material |
ABS、Polypropylene、aluminum |
|
|
Lead ways |
wire、cables、tabs(1+1，2+2) |
|
|
Executing Standard |
GB/T3667.1-2005 IEC60252-1:2001 |
|
|
(μF) |
250V～300V |
350V～400V |
400V～450V |
|||
|
D(mm) |
H(mm) |
D(mm) |
H(mm) |
D(mm) |
H(mm) |
|
|
3 |
25 |
45 |
25 |
45 |
25 |
45 |
|
4 |
25 |
45 |
25 |
45 |
25 |
45 |
|
5 |
25 |
45 |
25 |
45 |
34 |
50 |
|
6 |
25 |
45 |
25 |
65 |
34 |
50 |
|
7 |
25 |
45 |
25 |
65 |
32 |
60 |
|
8 |
30 |
50 |
30 |
60 |
32 |
60 |
|
10 |
30 |
50 |
30 |
60 |
32 |
60 |
|
12 |
30 |
60 |
32 |
60 |
34 |
60 |
|
12.5 |
30 |
60 |
32 |
60 |
34 |
70 |
|
13 |
30 |
60 |
32 |
60 |
34 |
70 |
|
14 |
30 |
60 |
34 |
60 |
38 |
70 |
|
15 |
32 |
60 |
34 |
60 |
38 |
70 |
|
16 |
32 |
60 |
34 |
60 |
38 |
70 |
|
18 |
32 |
60 |
34 |
70 |
40 |
70 |
|
20 |
32 |
60 |
34 |
74 |
40 |
70 |
|
25 |
34 |
60 |
38 |
70 |
42 |
70 |
|
30 |
34 |
70 |
42 |
70 |
42 |
90 |
|
35 |
42 |
70 |
42 |
70 |
45 |
90 |
|
40 |
42 |
70 |
45 |
90 |
50 |
90 |
|
45 |
42 |
70 |
45 |
90 |
50 |
90 |
|
50 |
45 |
70 |
45 |
90 |
50 |
100 |
|
55 |
45 |
90 |
50 |
90 |
50 |
100 |
|
60 |
45 |
90 |
50 |
90 |
50 |
100 |
|
70 |
45 |
90 |
50 |
100 |
55 |
120 |
|
75 |
45 |
90 |
50 |
120 |
55 |
120 |
|
80 |
46 |
95 |
50 |
120 |
55 |
120 |
|
90 |
50 |
90 |
55 |
120 |
60 |
120 |
|
100 |
50 |
90 |
55 |
120 |
60 |
120 |
|
120 |
50 |
120 |
60 |
120 |
|
|
|
150 |
55 |
120 |
|
|
|
|
Other types besides the above listed can be produced according to customer’s needs;Data above may be changed without notice.
