EKcraft Start Capacitor CBB61 Series provide professional production, manufacturing and supply services to the global market.The start capacitor helps the motor achieve reliable startup and improves its operational efficiency in cases of frequent start-stop cycles. It is highly suitable for applications that require significant space savings, possess self-repair capabilities, and have high fire safety standards. We offer bulk ordering support and enjoy factory direct supply prices. Contact us now for a quote.

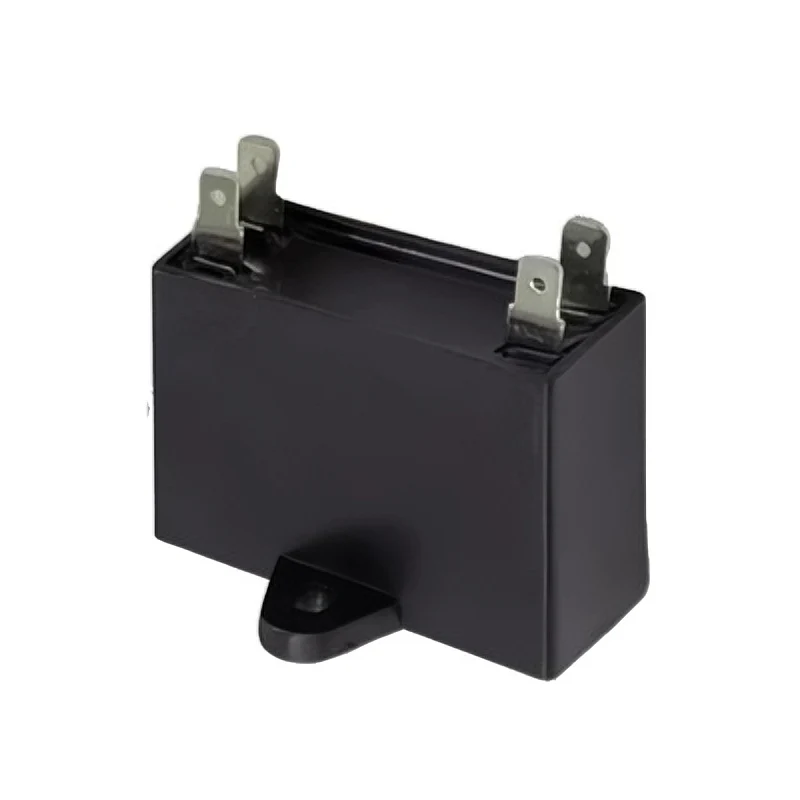

This start capacitor CBB61 Series is a high-reliability, small-sized capacitor. It is widely used as a start capacitor in single-phase AC motor starting circuits, capable of intermittent operation. During operation, this start capacitor enables the motor to start quickly and reliably, improving overall performance. It also ensures stability and durability. This start capacitor has the characteristics of small size, stable electrical performance, safety and reliability, and a long service life.
Shell Material:ABS、Polypropylene
Lead ways:wire、tabs(1+1，2+2)
|
Performance Advantages |
Stable electrical performance, strong adaptability, safety and reliability |
|
Material Advantages |
Strong self-repairing ability and long service life |
|
Structural Advantages |
Miniaturized and standardized design, with small size, high moisture resistance and high mechanical stability |
|
Functional Advantages |
Realize the rapid startup of the motor in single-phase AC applications and optimize its operating performance. |
The start capacitor CBB61 Series is suitable for ceiling fans, exhaust fans, washing machines, air conditioner fans, and various types of household appliances and industrial equipment driven by single-phase motors requiring reliable starting torque.
|
Capacitance Range |
1μF～30μF |
|
|
Rated Voltage |
250V～450VAC（50/60HZ） |
|
|
Capacitance Tolerance |
±5% or upon customer’s demand |
|
|
Loss Tangent |
tgδ≤0.002（50HZ-100HZ） |
|
|
Standard Temperature |
-25℃～+70℃、-40℃～+85℃ |
|
|
Climate calss |
25/70/21，40/85/21 |
|
|
Examine Voltage |
Between derivation head |
AC≥2.00Un 2S NO BREAKDOWN |
|
Between derivation head and shell |
AC≥2000V 2S NO BREAKDOWN |
|
|
Insulation Resistance |
Between derivation head |
Rj·C≥3000MΩ·μF |
| Between derivation head and shell |
Rj·C≥1000MΩ |
|
|
Security Level |
P0 |
|
|
Executing Standard |
GB/T3667.1-2005 IEC60252-1:2001 |
|
|
Standard Capacitance (μF) |
450V |
250V |
||||
|
L(mm) |
W(mm) |
H(mm) |
L(mm) |
W(mm) |
H(mm) |
|
|
1 |
39 |
16 |
26 |
|
|
|
|
2 |
45 |
15 |
36 |
|
|
|
|
3 |
39 |
20 |
29 |
39 |
16 |
26 |
|
4 |
38 |
19 |
54 |
39 |
20 |
29 |
|
5 |
46 |
21 |
36 |
45 |
17 |
40 |
|
6 |
48 |
18 |
39 |
45 |
17 |
40 |
|
7 |
50 |
23 |
41 |
46 |
21 |
36 |
|
8 |
45 |
26 |
45 |
46 |
21 |
36 |
|
10 |
50 |
23 |
41 |
46 |
21 |
36 |
|
12 |
58 |
27 |
44 |
56 |
17 |
32 |
|
15 |
58 |
27 |
44 |
58 |
24 |
38 |
|
16 |
58 |
27 |
44 |
58 |
24 |
38 |
|
20 |
58 |
35 |
50 |
58 |
24 |
38 |
|
24 |
68 |
32 |
56 |
58 |
28 |
42 |
|
25 |
68 |
32 |
56 |
58 |
28 |
42 |
|
30 |
68 |
32 |
56 |
58 |
35 |
50 |
Other types besides the above listed can be produced according to customer’s needs;Data above may be changed without notice.
