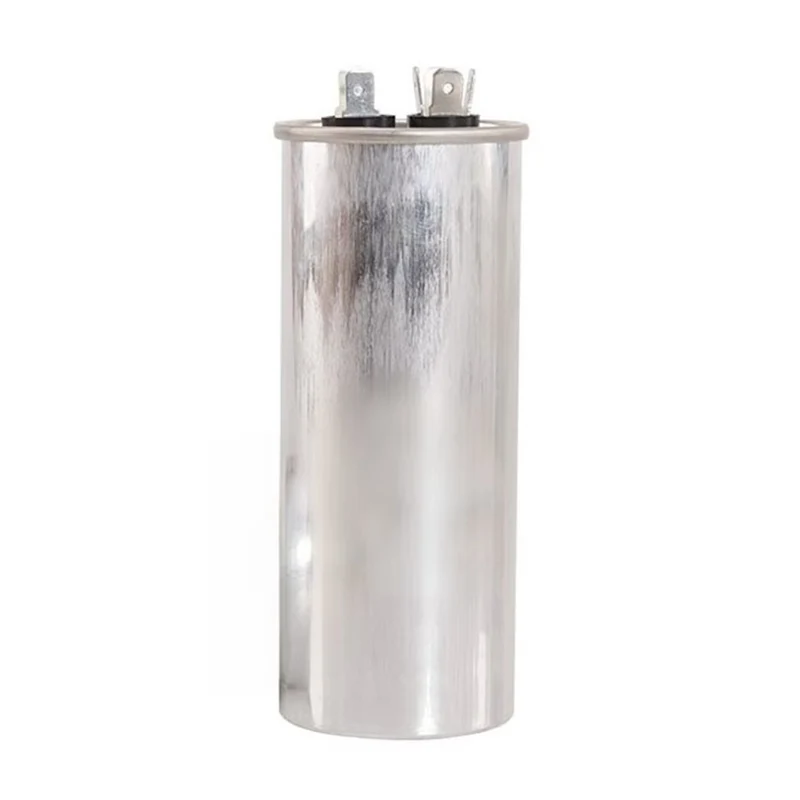

EKcraft run capacitors provide professional production, manufacturing and supply services to the global market. This run capacitor CBB65 Series is mainly designed for heavy equipment driven by single-phase motors, such as air compressors, refrigeration systems and water pumps. We offer bulk ordering support and enjoy factory direct supply prices. Contact us now for a quote.
Shell Material:Aluminum
Lead ways:tabs(2+2、2+4、4+4、2+3+4、4+4+4)
|
Performance Advantages |
High power, strong reliability, excellent environmental adaptability. Specifically designed for heavy-duty single-phase motors, it can maintain long-term stable operation under continuous high-intensity conditions. |
|
Material Advantages |
Efficient self-repairing, excellent heat dissipation, explosion-proof sealing. |
|
Structural Advantages |
It is packaged in an aluminum shell, featuring a second-generation mechanical shock resistance design, excellent moisture-proof performance and mechanical strength. |
|
Functional Advantages |
Suitable for systems that require strong starting torque and stability, such as heavy-duty single-phase motor systems. |
This type of run capacitor CBB65 Series is specifically designed for heavy-duty single-phase motor systems and is suitable for applications requiring strong starting torque and stable systems. For example, air conditioners, refrigerators, air compressors, etc.
|
Capacitance Range |
5μF～80μF |
|
|
Rated Voltage |
250V～450VAC（50/60HZ） |
|
|
Capacitance Tolerance |
±5% or upon customer’s demand |
|
|
Loss Tangent |
tgδ≤0.002（50HZ-100HZ） |
|
|
Standard Temperature |
70℃、85℃、105℃ |
|
|
Climate calss |
25/70/21，40/85/21 |
|
|
Examine Voltage |
Between derivation head |
AC≥2.00Un 2S NO BREAKDOWN |
|
Between derivation head and shell |
AC≥2000V 2S NO BREAKDOWN |
|
|
Insulation Resistance |
Between derivation head |
Rj·C≥3000MΩ·μF |
| Between derivation head and shell |
Rj·C≥1000MΩ |
|
|
Security Level |
P1、P2 |
|
|
Executing Standard |
GB/T3667.1-2005 IEC60252-1:2001 |
|
Single TYPE A.C.CAPACITOR
|
Standard Capacity MFD(μF) |
Round can |
Oval can |
|||
|
L(mm) |
H(mm) |
L(mm) |
W(mm) |
H(mm) |
|
|
5MFD |
40 |
55 |
52 |
32 |
60 |
|
7.5MFD |
40 |
60 |
52 |
32 |
60 |
|
10MFD |
40 |
70 |
52 |
32 |
60 |
|
12.5MFD |
40 |
70 |
52 |
32 |
60 |
|
15MFD |
40 |
80 |
52 |
32 |
60 |
|
20MFD |
45 |
80 |
71 |
45 |
80 |
|
25MFD |
45 |
90 |
71 |
45 |
80 |
|
30MFD |
50 |
100 |
71 |
45 |
90 |
|
35MFD |
50 |
100 |
71 |
45 |
90 |
|
40MFD |
50 |
110 |
71 |
45 |
90 |
|
45MFD |
50 |
110 |
71 |
45 |
90 |
|
50MFD |
50 |
110 |
71 |
45 |
90 |
|
55MFD |
55 |
130 |
71 |
45 |
110 |
|
60MFD |
55 |
130 |
71 |
45 |
110 |
|
70MFD |
60 |
120 |
71 |
45 |
110 |
|
80MFD |
60 |
120 |
71 |
45 |
130 |
|
Standard Capacity MFD(μF) |
Round can |
Oval can |
|||
|
L(mm) |
H(mm) |
L(mm) |
W(mm) |
H(mm) |
|
|
15+5MFD |
45 |
80 |
71 |
45 |
80 |
|
15+7.5MFD |
45 |
80 |
71 |
45 |
80 |
|
15+10MFD |
45 |
90 |
71 |
45 |
80 |
|
20+5MFD |
45 |
90 |
71 |
45 |
80 |
|
20+7.5MFD |
45 |
90 |
71 |
45 |
80 |
|
30+5MFD |
50 |
100 |
71 |
45 |
90 |
|
30+7.5MFD |
50 |
100 |
71 |
45 |
90 |
|
35+5MFD |
50 |
110 |
71 |
45 |
90 |
|
35+7.5MFD |
50 |
110 |
71 |
45 |
90 |
|
40+5MFD |
50 |
110 |
71 |
45 |
90 |
|
40+7.5MFD |
50 |
110 |
71 |
45 |
90 |
|
45+5MFD |
50 |
110 |
71 |
45 |
90 |
|
45+7.5MFD |
50 |
110 |
71 |
45 |
90 |
|
55+5MFD |
55 |
130 |
71 |
45 |
110 |
|
50+7.5MFD |
55 |
130 |
71 |
45 |
110 |
|
55+5MFD |
55 |
130 |
71 |
45 |
110 |
|
55+7.5MFD |
55 |
130 |
71 |
45 |
110 |
|
60+5MFD |
60 |
120 |
71 |
45 |
110 |
|
65+5MFD |
60 |
120 |
71 |
45 |
130 |
Other types besides the above listed can be produced according to customer’s needs;Data above may be changed without notice.
